304 Stainless Steel E-Liquid Filling Machine 10ml – 60ml Filling Volume

Detailed Product Description

Product Name:Vapor Juice Filling Capping MachineProduction Capacity:5-35 Bottles/min
Controller:PLC ControlOperation:Touch Screen
Language:English ChineseWarranty:12 Months
Filling Volume:10-60mlPass Rate:≥ 98%
High Light:fully automatic bottle filling machines, vial liquid filling machine

Automatic Vapor Juice Filling Capping Labeling Machine For Amber 30ml Bottles

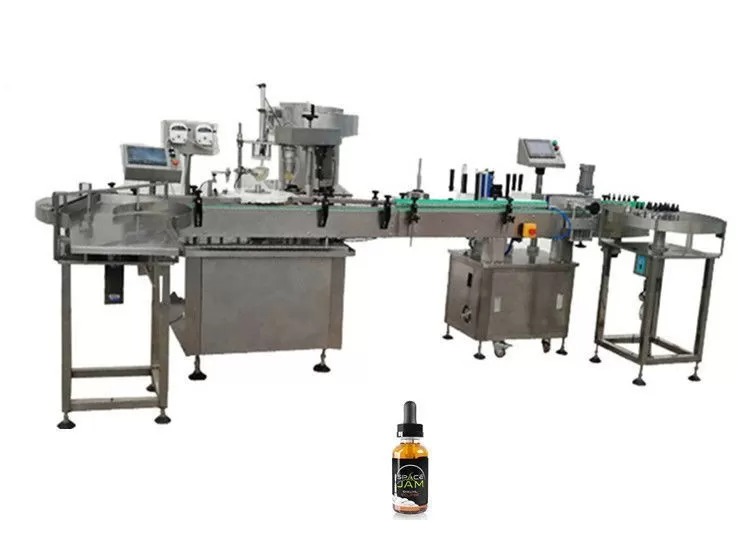

304 Stainless Steel E-Liquid Filling Machine


This production line is mainly used for electronic cigarette oil, eye drop, essential oil, nail polish, eye shadow and other products fully automatic filling production.

Filing head number2
Adding tips head1
Capping head number1
Filling volume5-120ml (Can be customized)
Capacity5-35 bottles/min
Filling accuracy≤ ±1%
Pass rate≥ 98%
Power supply1 Ph. 220V, 50/60Hz
Total power2.8 KW
Net weightAbout 850kg
Overall dimensionL6200 × W1800 × H1600mm

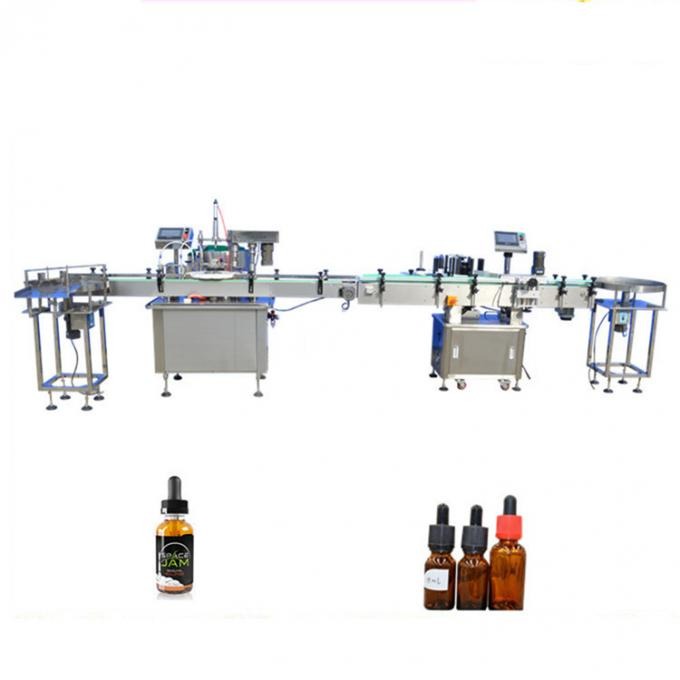

304 Stainless Steel E-Liquid Filling Machine

Performance Feature

1. Workflow: bottle unscrambling→bottle washing (optional)→filling→adding dropper/(adding plug, adding cap)→screw capping→self adhesive labeling→ribbon printing (optional)→shrink sleeve labeling (optional)→inkjet printing (optional)→bottle collecting (optional)→cartoning (optional).

2. This machine use a mechanical arm to screw caps, equipped with automatic sliding device, to prevent damage to the cap.

3. Peristaltic pump or piston pump measuring, (if use piston pump, when the filling volume difference is large, the corresponding pump body needs to be replaced), accurate measurement, easy to control.
If use Peristaltic pump, machine can adjust filling volume on the touch screen, and when bottle is not enough, machine will stop filling automatically, avoid waste.

4. Filling system has suction / anti-drip device.

5. Color touch screen display, PLC control system, no bottle no filling (only peristaltic pump)/ no adding plug/ no capping.

6. The whole line is compact, high speed, high degree of automation, save the manpower cost.

7. Main electrical elements adopt foreign well-known brands.

8. Machine shell is made of 304 stainless steel, easy to clean, machine, meets GMP requirements.
