Pneumatic Four Heads Sauce Paste Bottle Filling Machine For Glass Bottle

Detailed Product Description

Type:Filling MachineWeight:750kg
Operation:Simple OperateMeasure System:Pneumatic System
Controller:PLC ControlWarranty:1 Year
High Light:sauce bottle filling machine, sauce packaging machine, sauce filling machine

Four heads Filling Machine , Sauce filling Machine For Glass Bottle

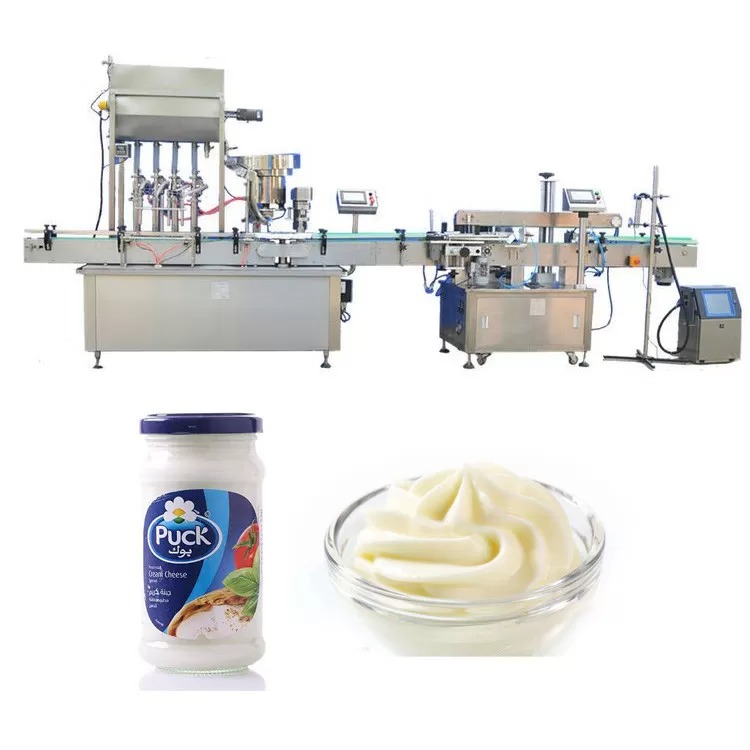

Pneumatic Four Heads Sauce Paste Bottle Filling Machine

This machine is suitable for filling and capping semi-liquid products with or without small particles: such as sweet chili sacue,beef paste,bean sauce,mushroon sauce,tomato sauce,peanut butter,jam,honey,sauce,shrimp paste,shampoo,body wash,liquid detergent,dishwashing liquid,etc.

Pneumatic Four Heads Sauce Paste Bottle Filling Machine

Performance features

1. Nice machine appearance,reasonable structure,this is the most advanced new design,machine can be customized with 4/6/8/12/etc filling heads according to customer's production capacity.

2. Adopts positive displacement plunger pump for filling,high precision.large range of adjusting dosage,can regulate filling volume of all the pump body as a whole,also can adjust one single pump slightly,quickly and conveniently

3. Plunger pump filling system has features of no absorbing drugs,good chemical stability, high temperature resistance.corrosion resistance,abrasion resistamce,longlife service ,it has unique advantages,when filling corrosive liquid.

4. Used for various viscosity liquid filling,frequency control speed,automatic counting.

5. Main electrical elements adopt foreign well-known brand

6. Machine body is made of 304 stainless steel, full compliance with GMP standard

Pneumatic Four Heads Sauce Paste Bottle Filling Machine

Technical parameter

Filling head number4
Filling volume50-1000ml (can be customized)
Capacity10-40 bottles/min
Filling accuracy≤±1%
Pass rate≥98%
Power supply1PH,AC220V,50/60HZ
Total power3.8KW
Net weight750kg
Overall dimensionL2200*W1500*H1650mm
