2 Heads Essential Oil Filling Machine Siemens PLC Control System Founded

Detailed Product Description

Voltage:220VProduct Name:Essential Oil Filling Capping Machine
Capacity:10-70 Bottles/minMaterial:304 Stainless Steel
High Light:edible oil filling machine, essential oil bottle filling machine

30ml 60ml 100ml Automatic Eliquid Filling Machine , E-Juice Flavor Filling Machinery Line For Plastic Or Glass Bottle

2 Heads Essential Oil Filling Machine

Whole filling line includes

1. Automatic Bottle feeder
2. Automatic filling, plugging, capping machine
3. Automatic vertical labeling machine
4. bottle collect machine.

Our eliquid/eye or ear drops/ essential oil small bottle Machines Can be Customized according to customers' bottle / requirement.

2 Heads Essential Oil Filling Machine


This production line is mainly used for electronic cigarette oil, eye drop, essential oil, nail polish, eye shadow and other products fully automatic filling production.

2 Heads Essential Oil Filling Machine

Performance feature

1. Workflow: bottle unscrambling→bottle washing (optional)→filling→adding dropper/(adding plug, adding cap)→screw capping→self adhesive labeling→ribbon printing (optional)→shrink sleeve labeling (optional)→inkjet printing (optional)→bottle collecting (optional)→cartoning (optional).

2. This machine use a mechanical arm to screw caps, equipped with automatic sliding device, to prevent damage to the cap.

3. Peristaltic pump or piston pump measuring, accurate measurement, easy to control.

If use piston pump, when the filling volume difference is large, the corresponding pump body needs to be replaced.
If use Peristaltic pump, machine can adjust filling volume on the touch screen, and when bottle is not enough, machine will stop filling automatically, avoid waste.

4. Filling system has suction / anti-drip device.

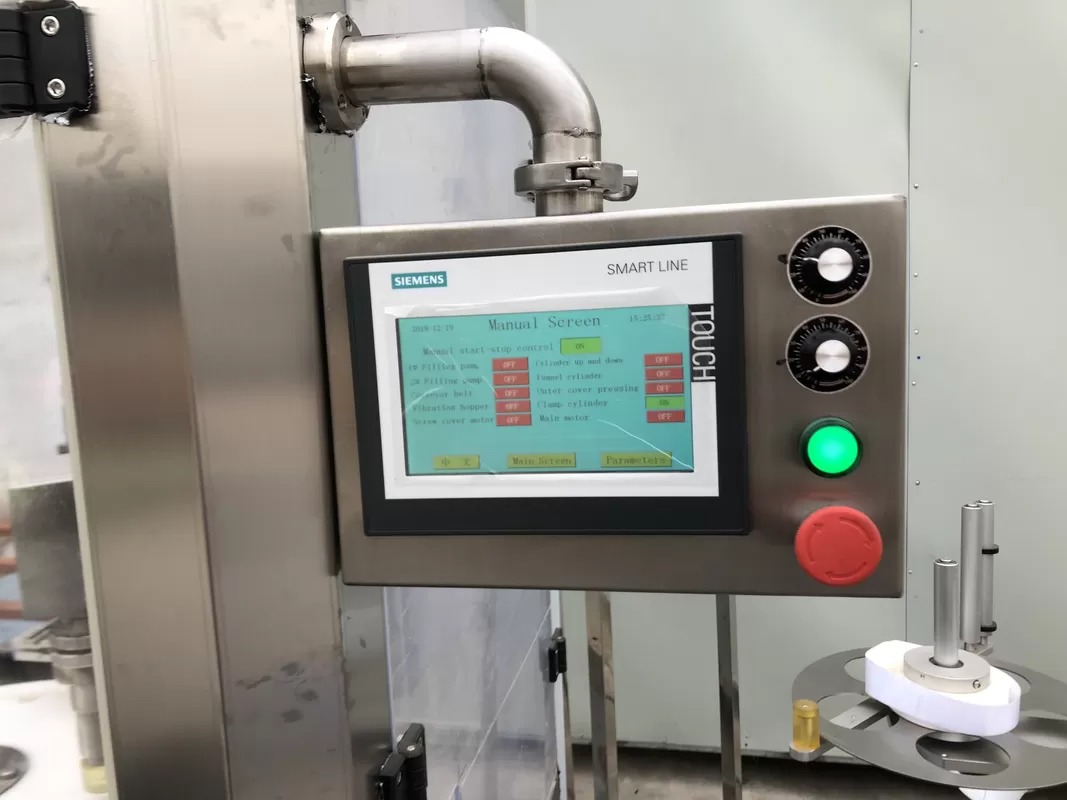

5. Color touch screen display(can choose Siemens), PLC control system, no bottle no filling (only peristaltic pump)/ no adding plug/ no capping.

6. The whole line is compact, high speed, high degree of automation, save the manpower cost.

7. Main electrical elements adopt foreign well-known brands.

8. Machine shell is made of 304 stainless steel, easy to clean, machine, meets GMP requirements.

2 Heads Essential Oil Filling Machine

Technical Parameter:

Filling volumn5-120ml (othervolume Can be customized)
Filling Nozzles2, 4, nozzles Can be customized
Production capacity2 heads: 5-35 bottle /min, 4 heads: 10-70 bottle /min
Filling accuracy±1%(according to product)
Capping rate≥98%(according to product)
Power supply1ph, 220V 60/50Hz or 3ph.380V
Total dimension4600 * 3800 * 1600mmCan be customized

2 Heads Essential Oil Filling Machine

Tag: edible oil filling machine, essential oil bottle filling machine
