Detailed Product Description
|Product Name:||Automatic E-liquid Filling Machine||Production Capacity:||5-35 Bottles/min|
|Controller:||PLC Control||Operation:||Touch Screen|
|Filling Volume:||5-120ml||Filling Accuracy:||≤ ±1%|
|High Light:||edible oil filling machine, essential oil bottle filling machine|

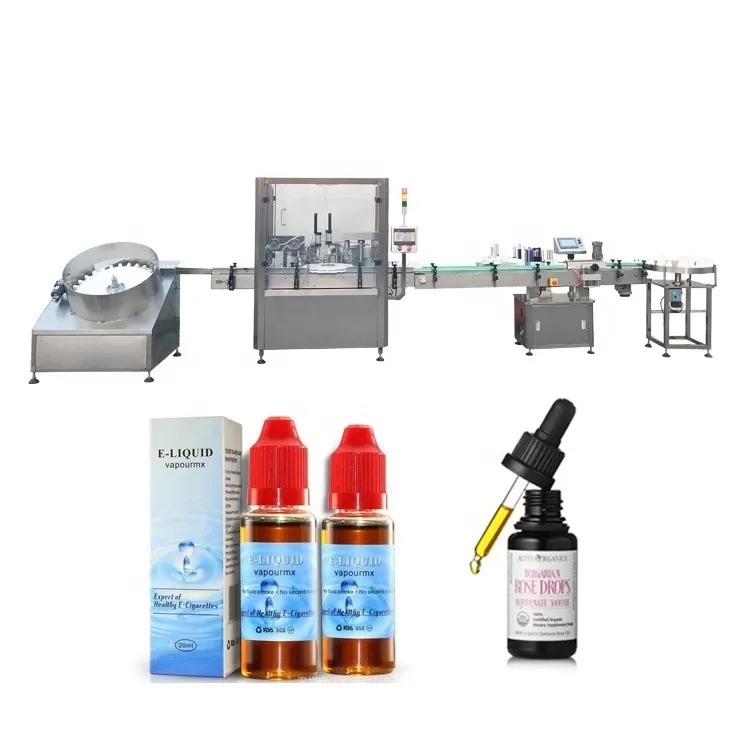

NP-YX2 Automatic Essential Oil Filling Machine Line For 5ml 10ml 15ml 30ml 60ml 100ml Glass Bottle
This production line is mainly used for electronic cigarette oil, eye drop, essential oil, nail polish, eye shadow and other products fully automatic filling production.
1. Workflow: bottle unscrambling→bottle washing (optional)→filling→adding dropper/(adding plug, adding cap)→screw capping→self adhesive labeling→ribbon printing (optional)→shrink sleeve labeling (optional)→inkjet printing (optional)→bottle collecting (optional)→cartoning (optional).
2. This machine use a mechanical arm to screw caps, equipped with automatic sliding device, to prevent damage to the cap.
3. Peristaltic pump or piston pump measuring, (if use piston pump, when the filling volume difference is large, the corresponding pump body needs to be replaced), accurate measurement, easy to control. If use Peristaltic pump, machine can adjust filling volume on the touch screen, and when bottle is not enough, machine will stop filling automatically, avoid waste.
4. Filling system has suction / anti-drip device.
5. Color touch screen display, PLC control system, no bottle no filling (only peristaltic pump)/ no adding plug/ no capping.
6. The whole line is compact, high speed, high degree of automation, save the manpower cost.
7. Main electrical elements adopt foreign well-known brands.
8. Machine shell is made of 304 stainless steel, easy to clean, machine, meets GMP requirements.
|Filing head number||2|
|Adding plug/dropper head||1|
|Capping head number||1|
|Filling volume||2-120ml (Can be customized)|
|Filling accuracy||≤ ±1%|
|Pass rate||≥ 98%|
|Power supply||1 Ph. AC220V, 50/60Hz|
|Total power||2.8 KW|
|Net weight||About 850kg|
|Overall dimension||L6200 × W1800 × H1600mm|
