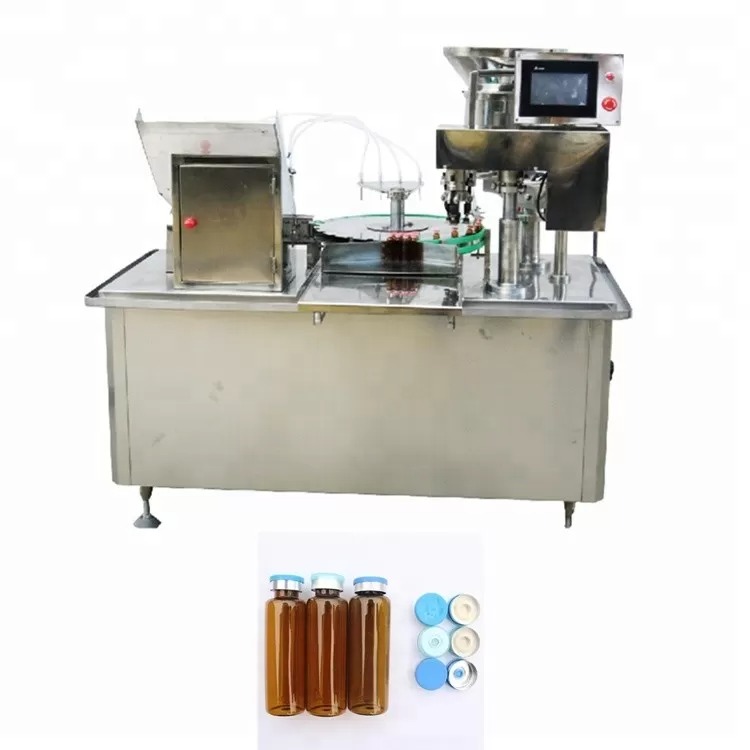

PLC Control Automatic Oral Liquid Filling Machine For Production Line 5ml – 30ml Filling Range

Detailed Product Description

Type:Filling MachineApplication:Medical
Power:2.5 KWDimension(L*W*H):2600x1200x1650(mm)
Weight:600kgFilling Range:5-30ml
High Light:automatic bottle filling machine, automatic bottling equipment

Automatic Oral Liquid Filling Machine Production Line

PLC Control Automatic Water Bottle Filling Machine For Production Line

Performance Features

1. This machine uses PLC control system, color touch screen display.

2. Mainly used for 5-30ml straight tube bottle (with easy pull lid or aluminum cover) filling, adding cover and sealing.

3. Achieve reliable bottle transporting and tracking filling by screw, which is not easy to produce foam. It transports the cover by electromagnetic vibration, high covering rate.

4. This machine is 2-in-1 filling and sealing, advanced design and compact structure.

5. Main electrical elements adopt foreign well-known brands.

6. Machine shell is made by 304 (optional 316) stainless steel, machine completely meets GMP requirements.

Technical Parameters

Filing nozzle412
Filling volume5-30ml5-30ml
Filling speed80-100 bottles/min180-220 bottles/min
Filling accuracy≤ ±1%≤ ±1%
Sealing rate≥ 99%≥ 99%
Total power1.3 KW2.5 KW
Power supply1 Ph. AC220V, 50/60Hz3 Ph. 380V, 50/60Hz
Machine sizeL1800 x W1800 × H1500mmL2600 × W1200 × H1650mm
Net weight600kg800kg

Automatic Oral Liquid Bottle Filling Machine works on volumetric principle with syringe & piston & nozzle. It is used to fill liquid in bottle in pharmacy, food, dairy, agro chemicals and Beverages industries.

The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, consists of S.S. Slat Conveyor, Drives unit with syringe & piston, Reciprocating Nozzle with self-centering devices & No container No filling system arrangement is standard features of the machine. The main drive of the machine and conveyor drive consist of gear motor with synchronized variable drive.

Containers moving on S.S.304 Slat conveyor from turn table or washing machine, feed below the filling nozzles through a settable twin pneumatically operated stopper system. The twin pneumatically operated stopper system and reciprocating nozzles can precisely match for centering of container below nozzles, to avoid spillage of liquid on container. Liquid suck by syringe & piston assembly and fill in bottle through nozzle. Filling doze can be adjustable by eccentric drive block. To minimize foaming adjustable nozzle will reciprocate according to filling dose, nozzle will go upwards slowly from bottom level of bottle towards neck during filling.
