Detailed Product Description
| Name: | Bottle Capping Machine | Voltage: | 220V |
|---|---|---|---|
| Dimension(L*W*H): | 2200 X 1300 X 1600mm | Weight: | 450kg |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Capping Speed: | 20-80 Bottles/min |
| High Light: | liquid filling capping machine, bottling capping machine | ||
NP-XG Automatic Glass Bottle Capping Machine Screw Capper
Machine Introduction
This machine is suitable for automatic screw cap glass bottles, plastic bottles, widely used in medicine, food, chemical industry, etc.
1. PLC control system, color touch screen display.
2. This machine adopts constant torque screw cap, equipped with automatic sliding device, to prevent the cap damage.
3. Machine has of no bottle no labeling, no cap automatic stopping as protection device.
4. Machine body and product touching part are made by stainless steel, completely meets GMP requirements.
Technical Parameters
| Bottleneck diameter | 50-110mm |
| Bottle height | 50-220mm |
| Cap dimension | Height: 5-50mm, diameter: 20-100mm |
| Capacity | 20-80 bottles/min |
| Capping rate | ≥99% |
| Power supply | 1phase, 220V, 50/60Hz, 2KW |
| Machine weight | 450kg |
| Machine dimension | 2200mmx1300mmx1700mm |

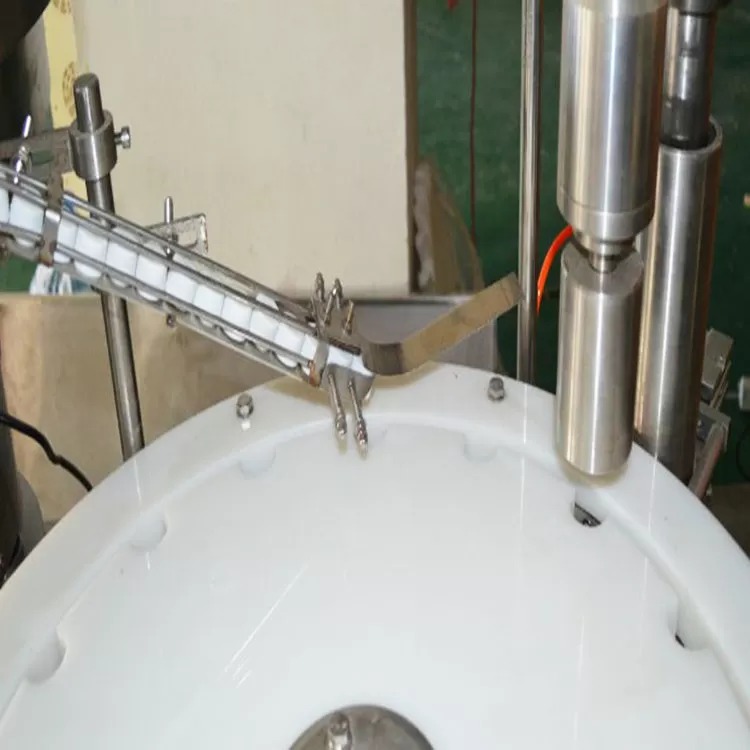

Cap transfer
