| Product Name: | Pest Bug Spray Filling Capping Machine | Voltage: | 220V |
|---|---|---|---|
| Power: | 1.5KW | Dimension(L*W*H): | 2100 * 1600 * 2000mm |
| Filling Accracy: | ≤±1% | Material: | Full Stainless Steel |
| Speed: | 10-35 Bottles/min | Packing Range: | 20-200ml (accept Personalized) |
| High Light: | perfume bottle filling machine, perfume bottling machine | ||

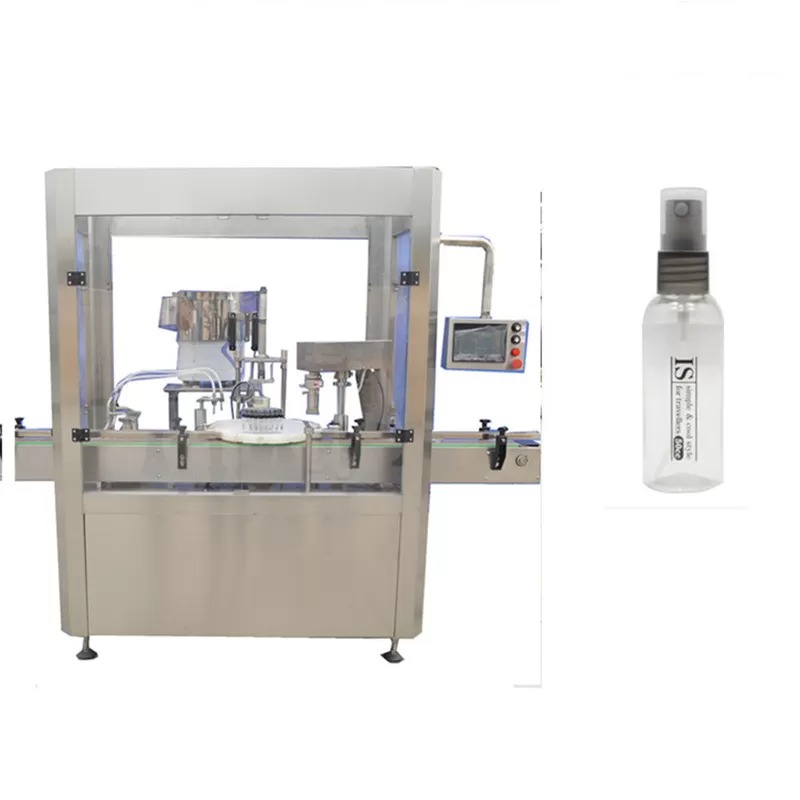

Automatic Pest Bug Spray Filling Capping Machine Line 100ml 200ml
Main character of spray filling
1. PLC control
2. No bottle, no filling
3. CE certificate+GMP standard
4. Full stainless steel machine
5. High precise filling
Performance Features
1. Good brand PLC control system and color touch screen,
2. Stainless steel piston pump quantitative filling,
3. Pneumatic adding cap and elevating screw capping,
4. Machine body is made of 304 stainless steel, which is full compliance with GMP requirements,
5. With accurate filling measurement, smooth screw capping and easy operation.
Technology Parameter
| Model | NP-P2 | NP-P4 | NP-P8 |
| Filing head number | 2 | 4 | 8 |
| Adding pump head | 1 | 1 | 2 |
| Capping head number | 1 | 1 | 2 |
| Filling volume | 20-200ml (can be customized) | 20-200ml (can be customized) | 20-200ml (can be customized) |
| Capacity | 10-35 bottles/min | 20-50 bottles/min | 80-100 bottles/min |
| Filling accuracy | ≤ ±1% | ≤ ±1% | ≤ ±1% |
| Pass rate | ≥ 98% | ≥ 98% | ≥ 98% |
| Power supply | 1 Ph. AC220V, 50/60Hz | 1 Ph. AC220V, 50/60Hz | 1 Ph. AC220V, 50/60Hz |
| Total power | 1.5 KW | 1.6KW | 1.8 KW |
| Net weight | 500kg | 550kg | 650kg |
| Overall dimension | 1800×1600×1500mm | 1800×1900×1500mm | 2400×1900×1500mm |
Warm Tips
1. We could produce different machines due to your capacity request.
2. If your filling volume is out of the range of machine, we could customize for you.
Detailed Images

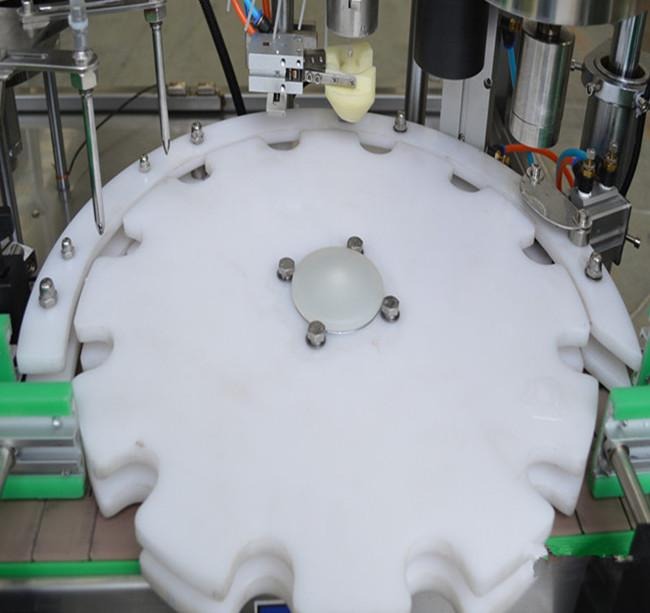

Bottle rotary table (customized due to diffrent bottles)
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would liek to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placking the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process ?
1. Sign the Contact
2. Arrange 30% deposit to our factory
3. Factory arrange production
4. Testing & detecting the machine before shipping
5. Inspected by customer or third agency through online or site test.
6. Arrange the balance payment before shipment.
Q6: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
Tag: perfume bottle filling machine, perfume bottling machine
