Detailed Product Description
| Type: | Capping Machine | Condition: | New |
|---|---|---|---|
| Packaging Type: | Bottles | Packaging Material: | Plastic, Wood |
| Controller: | PLC Control | Material: | SUS304 |
| High Light: | perfume packaging machine, perfume bottling machine | ||

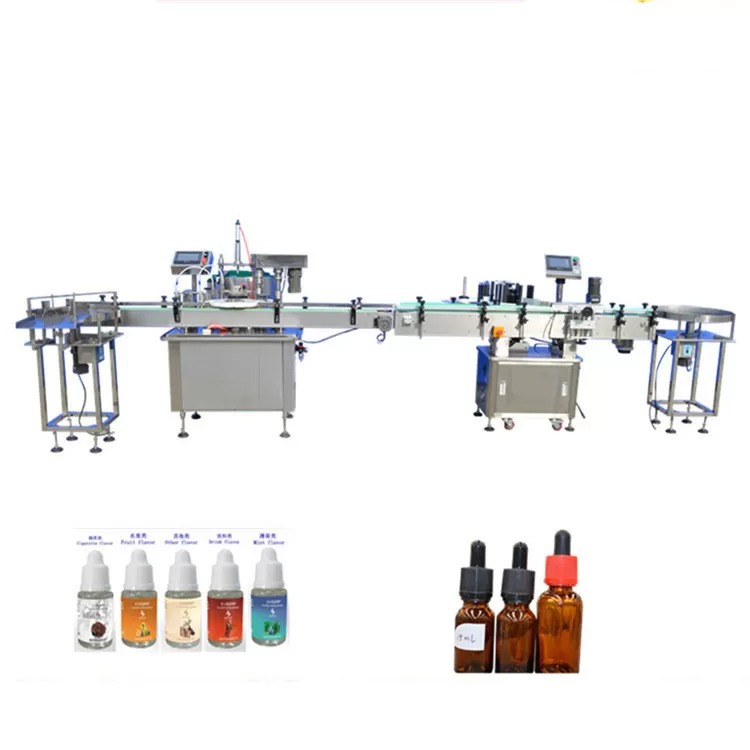

Automatic Ejuice Eliquid 30ml Filling Machine E-Liquid Filling Machine For Dropper Glass Bottles
Usage
This production line is suitable for the filling of 10-150ml liquid, such as eliquid, eye drops, facial liquid, essential oil, nail polish and so on.
The whole line can be customized with these functions:
- Bottle feeding (automatic or semi-automatic)
- Bottle washing (optional)

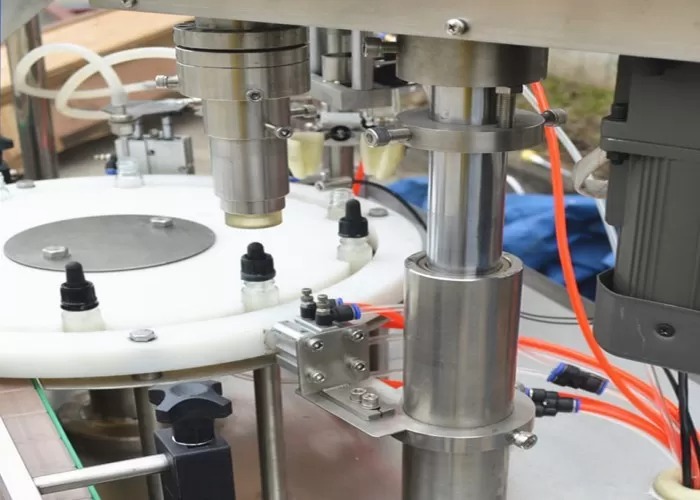

- Bottle filling capping (adding inner plug or adding dropper, screw rotary caps)
- Labeling (Also can be customized according to your bottles)
- Shrink sleeve labeling (adding plastic wrap for the whole bottle)
- Bottle collecting (Collect the bottle in the end of the filling line)
Mainly used for the filling linkage production of various liquid materials in pharmaceutical, food, chemical industry.
The production line is fully compliant with the GMP requirements.
Features
1. Linear filling and capping is easy to operate, precise filling, and you can select different production rate.
2. Vertical labeling machine adopts PLC and Servo motor, Touch screen control with the features of labeling precision, high efficiency.
3. This line is provided with stepless frequency speed adjustment, production speed is controllable.
4. All the electrical appliances are well-known brand in domestic and overseas.
5. Whole machine are made by 304 stainless steel, fully meet the requirements of GMP.
Technical parameter
automatic eliquid 10ml filling machine e liquid fill machine with protection cover 30ml amber dropper glass bottles
| Applicable specifications | 10-120 ml (other volume can be customized) |
| Filling head | 2 heads (low speed), 4 heads (high speed) |
| Production capacity | 2 heads: 20-40 bottle /min, 4 heads: 30-80 bottles / min |
| Filling accuracy | ±1% |
| Capping rate | ≥99% |
| Power supply | 1ph 220V, 50/60 Hz |
| Power | 2.5kW |
