Detailed Product Description
| Name: | Automatic Liquid Filling Machine | Voltage: | 220v |
|---|---|---|---|
| Power: | 3.0 KW | Dimension(L*W*H): | 4600*4800*1600mm |
| Weight: | 1000kg | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Control: | PLC+ Touch Screen | ||
| High Light: | automatic bottle filling machine, automatic filling machine | ||
Automatic liquid filling and capping machine , dropper bottle filling machine
Machine Introduction:
- High-grade new design machine for e liquid/eye drop bottles filling, adding plug and capping filling production.
- With PLC control system, this filling line has the advantages of easy operation (touch screen), accurate filling and capping.
- This machine is made of high quality SUS304 stainless steel.
- This machine meets GMP requirements.
Technical parameters:
| Filling volume | 2-100ml |
| Filling nozzle | 4 |
| Production capacity | 10-70 bottles/min |
| Filling accuracy | ≤ ±1% |
| Capping rate | ≥99% |
| Voltage | AC220V/50Hz |
| Power | 3.0KW |
| Machine dimension | 6400mm×4800mm×1600mm |
Sample
4 filling nozzles, 2 capping heads:

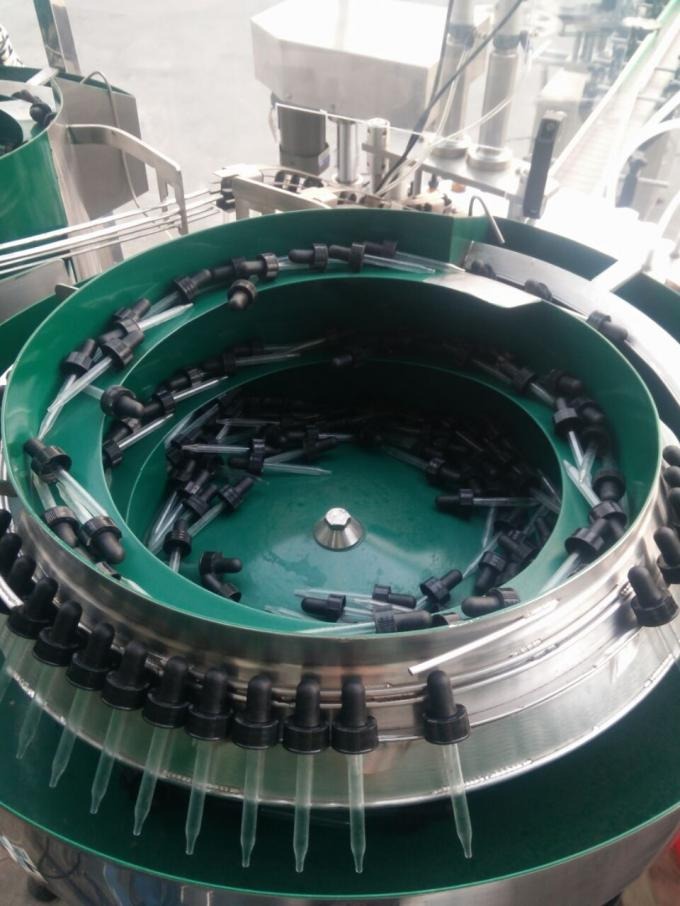

Dropper cap feeder:
Collection table:
Tag: automatic bottle filling machine, automatic filling machine
